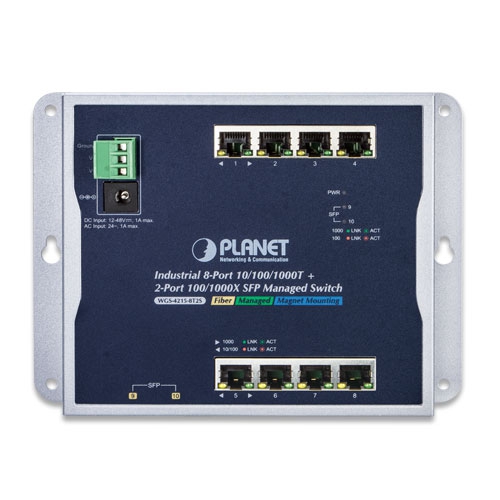

Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Wall-mount Managed Switch (-40~75 degrees C) – WGS-4215-8T2S
Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Wall-mount Managed Switch (-40~75 degrees C)

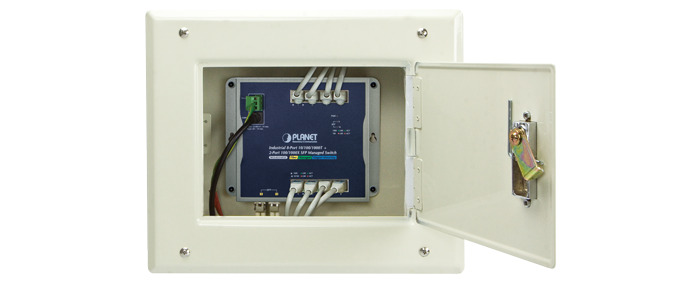

Designed to be installed in a wall enclosure or simply mounted on a wall at any convenient location, PLANET WGS-4215-8T2S, an innovative, Industrial 8-port 10/100/1000T + 2-port 100/1000X SFP Wall-mount Managed Switch, offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-4215-8T2S is able to operate reliably, stably and quietly in any environment without affecting its performance. Featuring ultra networking speed and operating temperature ranging from -40 to 75 degrees C in a compact but rugged IP30 metal housing, the WGS-4215-8T2S is an ideal solution to meeting the demand for the following network applications:
• Building/Home automation network
• Internet of things (IoT)
• IP surveillance
• Wireless LAN
Specifications
Copper Ports: Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

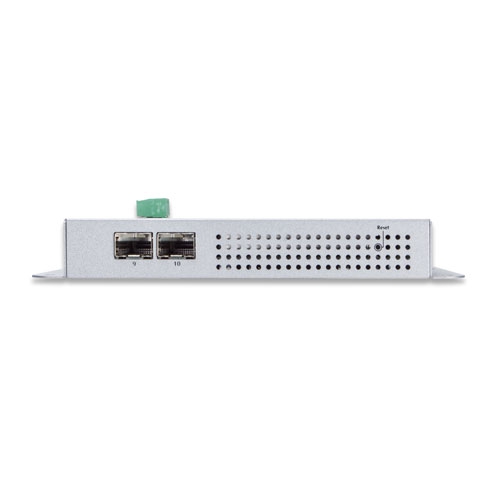

SFP/mini-GBIC Slots: Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
Reset Button:
< 5 sec: System reboot
> 5 sec: Factory default
LED:
System:
Power (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 8):
1000 LNK / ACT (Green), 10/100 LNK/ACT (Amber)
100/1000Mbps SFP Interfaces (Port 9 to Port 10):
1000 LNK / ACT (Green), 100 LNK/ACT (Amber)

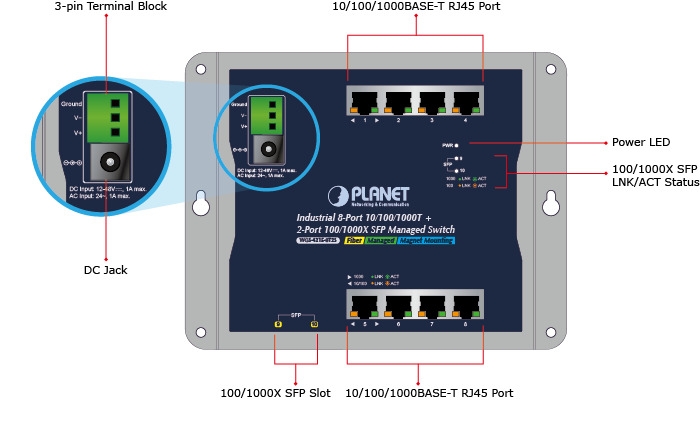

Connector:
Removable 3-pin terminal block for power input
Pin 1/2 for DC Power (Pin 1: v+ / Pin 2: V-)
Pin 3 for earth ground
DC power jack with 2.0mm central pole
Power Requirements:
12V~48V DC,1A / 24V AC,1A terminal block
12V~48V, 1A DC jack power input
Power Consumption/ Dissipation: Max. 7.9 watts/26BTU
Dimensions (W x D x H): 178 x 25 x 134 mm
Weight: 663g
ESD Protection: 6KV DC
EFT Protection: 6KV DC
Enclosure: IP30 metal

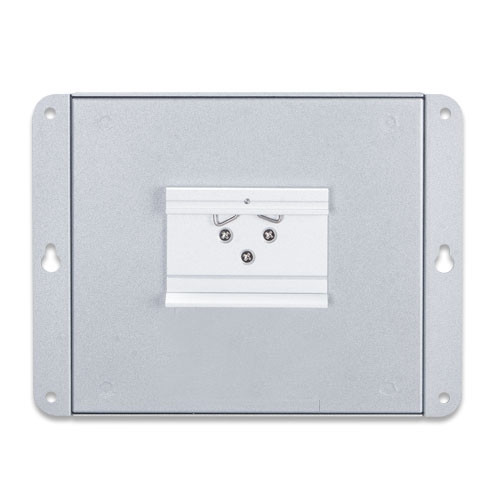

Installation: Wall mount, magnetic wall mount and DIN-rail kit
Switch Architecture: Store-and-Forward
Switch Fabric: 20Gbps/non-blocking
Switch Throughput@64 bytes: 14.8Mpps @64 bytes
MAC Address Table: 8K entries
Shared Data Buffer: 4.1 megabits
Flow Control:
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame: 9216 bytes
Operating:
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage:
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
