S6110-1040

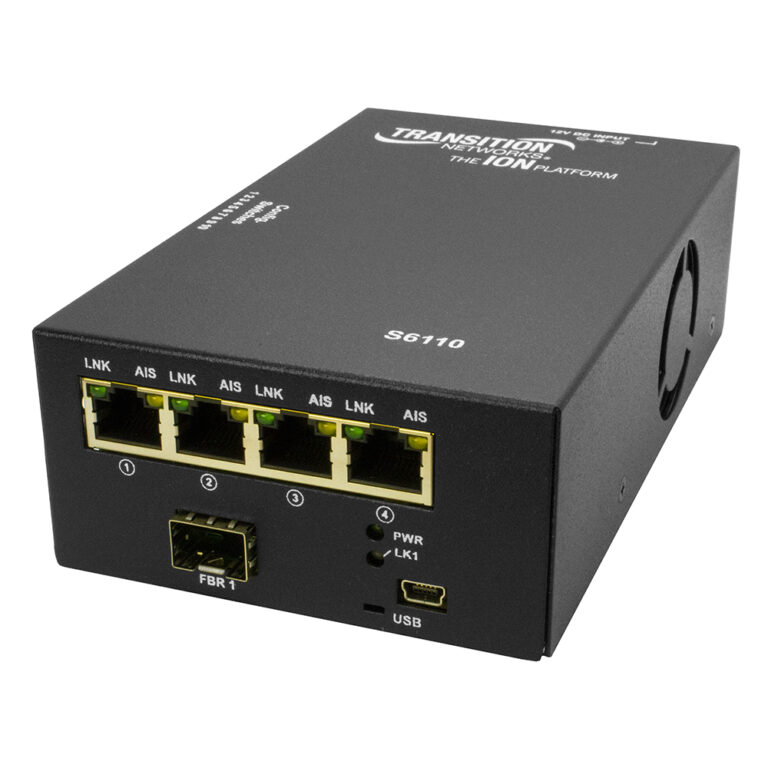

The ION S6110 is a managed stand-alone DS1 – T1/E1/J1 media converter mux that provides a solution for those users that need to extend multiple DS1 – T1/E1/J1 connections over fiber. The S6110 includes (4) RJ-48 ports and (1) fiber port. The device offers support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6110 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6110 is linked to a C6110 card installed in a managed ION chassis.

Specifications
Data Rate:
Copper ports (RJ-48): T1(J1) = 1.544 Mb/s,
E1 = 2.048 Mb/s
SFP port (empty): 100Base-X/OC-3

Switch: Numerous switch settings for line coding, line build out, loopback and AIS

Status LEDs: Power, Port Status, Loopback and AIS

Dimensions:
Width: 3.7” [94 mm]
Depth: 6.5” [165 mm]
Height: 1.8” [46 mm]

Power Consumption:
6 Watts (max) for dual fiber model
5.5 Watts (max) for single fiber model

Power Input: AC: 12 VDC via barrel connector using 100-240VAC, UL listed power supply

Environment:
Operating: -10°C to 65°C
Storage: -40°C to +85°C
Humidity: 5% to 95% (non-condensing)

Weight: 2 lbs. [0.90 kg]

MTBF: 114,580 hours (Bellcore)
