Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts) – POE-171A-95-IR

PLANET POE-171A-95 is a Single-Port, 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. It is also equipped with two 10M/100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.

Specifications
Interface:
Input Port
1 x RJ45 STP
Data In

Output Port
1 x RJ45 STP
PoE (Data + Power) Out

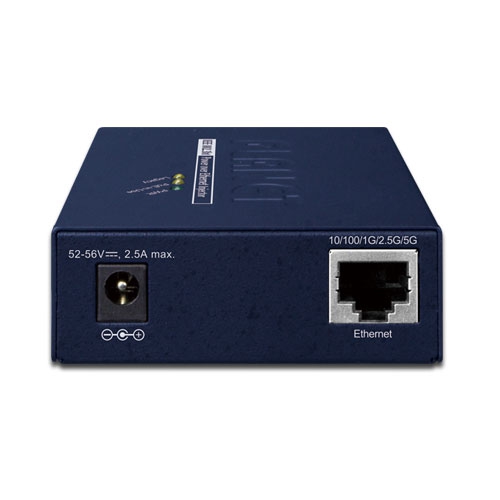

DC Socket
1 x 52~56V DC input socket

Network Cable:
Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5G: 4-pair UTP Cat. 5e, 6, 6A
5G: 4-pair UTP Cat. 6, 6A

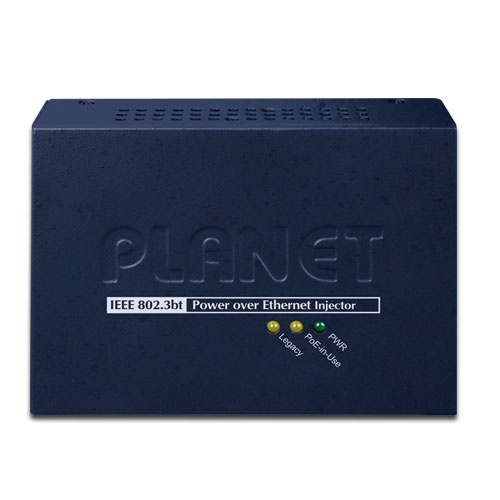

LED Indicators:
System: Power x 1 (Green)
PoE Port: PoE-in-Use x 1 (Amber)
Legacy mode: Legacy x 1 (Amber)

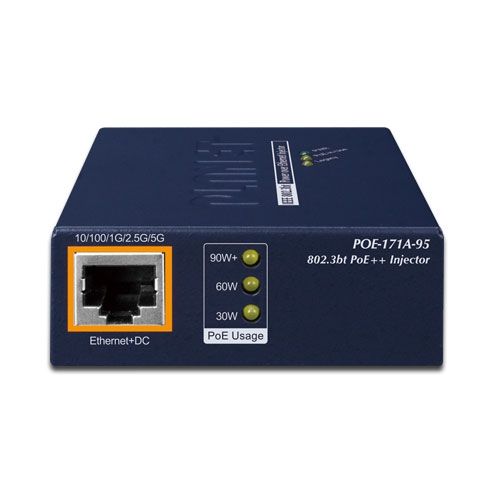

PoE Usage: PoE Usage x 3 (Amber)

Data Rate: 10M / 100M / 1G / 2.5G / 5Gbps

ESD Protection: 6KV DC

Enclosure: Metal case

Dimensions (W x D x H): 94 x 70.3 x 26.2 mm

Weight: 250g

Power Requirements: DC 52~56V, 2.5A max.

Power Consumption: 130 watts max.

No. of devices that can be powered: 1

PoE Standard: IEEE 802.3at/bt PSE

PoE Power Output Budget: DC 52~56V/95-watt PoE via 4-pair

PoE Power Output:
Max. 89.5W@1m cable
Max. 75W@100m cable

PoE Power Supply Type: End-span + Mid-span

Power Pin Assignment:
Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)

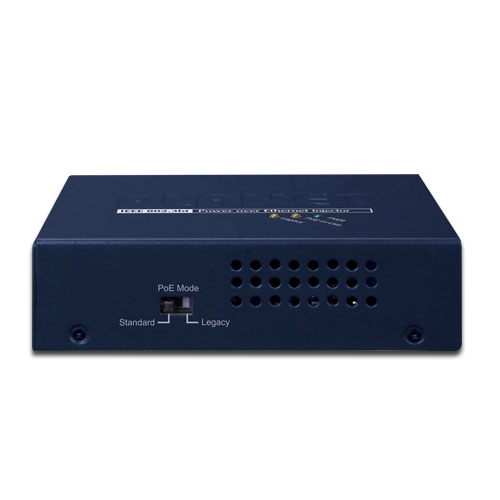

PoE Mode:
Standard mode
Legacy and Force modes

Operating Temperature: 0 ~ 50 degrees C
Storage Temperature: -10 ~ 70 degrees C
Operating Humidity: 5 ~ 90%, relative humidity, non-condensing
Storage Humidity: 5 ~ 90%, relative humidity, non-condensing
