NetworkHD 500 Series 4K60 4:4:4 JPEG2000 Encoder & Decoder – NHD-500

The NetworkHD 500s series is an HDMI 2.0 AV over IP solution. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. A powerful routing engine allows audio, video, USB and control signals to be discretely sent to any endpoint. Create captivating video walls up to 16×16 in size and control them with the tap of a button in the amazing NetworkHD Touch control app.

Specifications
AUDIO & VIDEO
Inputs:

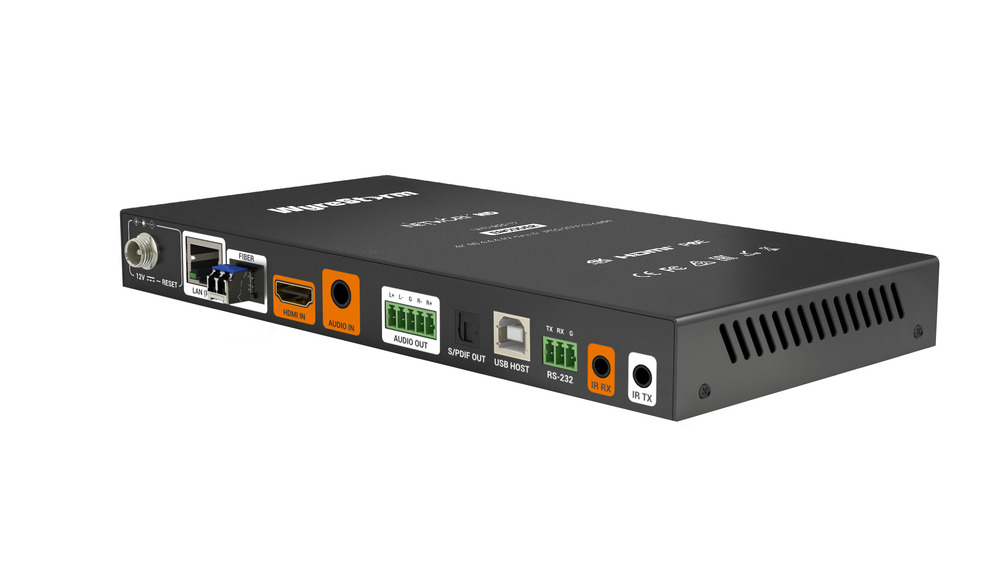

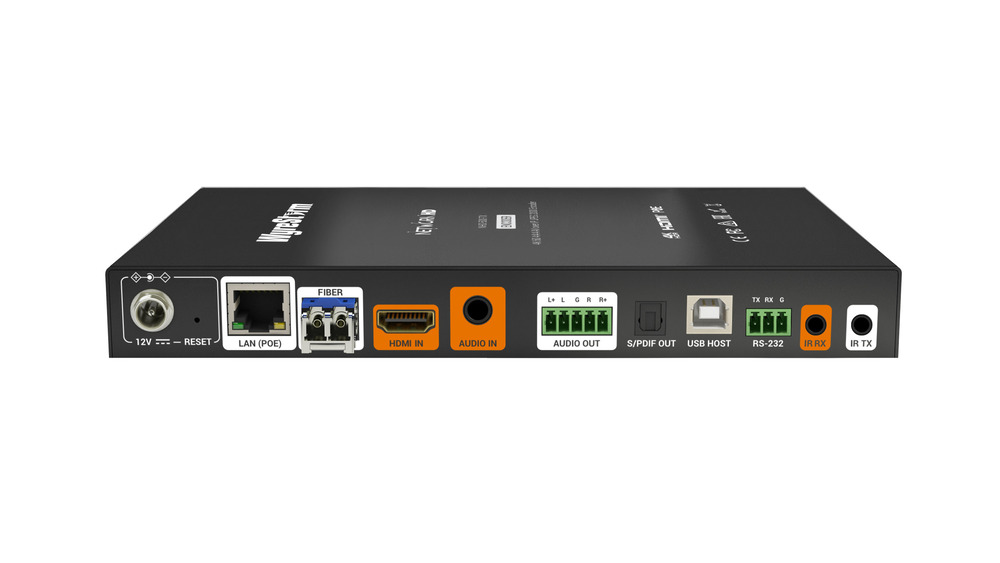

TX:
1 x HDMI 2.0b
1 x 3.5mm TRS Audio
RX:
1 x S/PDIF (Toslink)

Outputs:
TX:
1 x 5-pin Balanced Audio
1 x S/PDIF Digital

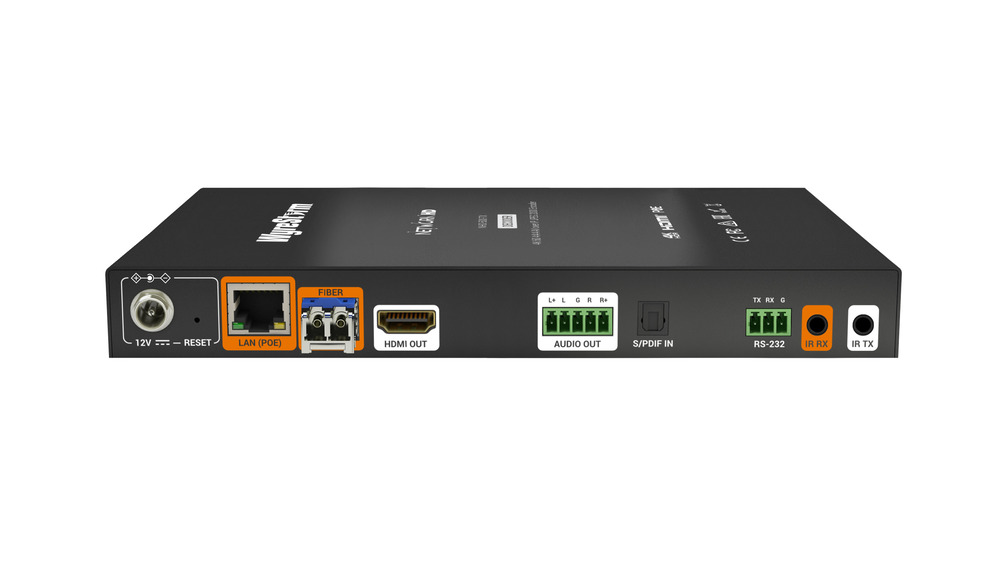

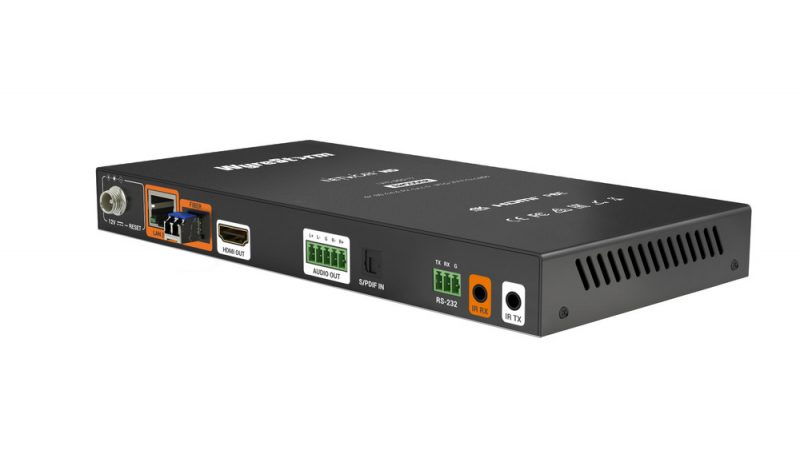

RX:
1 x HDMI 2.0b
1 x 5-Pin Balanced Audio

Video Resolution (Max):
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision/HDR/HLG
1920x1080p @60Hz 12bit

Audio Formats:
Passthrough: 2ch PCM and up to DTS:X and Dolby Atmos
ARC: 2ch PCM and up to Dolby Digital+ and DTS 5.1

Supported Standards: DCI | RGB | USB

Maximum Pixel Clock: 600Mhz

Output Video Encoding: JPEG 2000

Encoding Data Rate: Max 850Mbps

End-to-End Latency: 1 video frame latency (pass-through mode) 16ms @ 4K60 | 2 video frames latency (scaler/VW mode)

COMMUNICATION & CONTROL
HDMI: HDMI 2.0 | HDCP 2.2 | CEC | EDID | ARC

LAN:
1x 1GbE 8-Pin RJ45
1x 1Gb SFP:
(1000Base-SX: 550m using OM3 MMF)
(1000Base-LX: 5km using SMF)
(1000Base-LX10: 10km using SMF)

IR:
1x IR TX 3.5mm TS Mono Jack | API Programmable
1x IR RX 3.5mm TRS Stereo Jack | API Programmable

RS-232: 1x 3-Pin Phoenix Connector | 2-way | API Programmable

Communication Protocols: Telnet | TLS | SSH | HTTP | HTTPS

USB:
TX:
1 x USB 2.0 Type Host

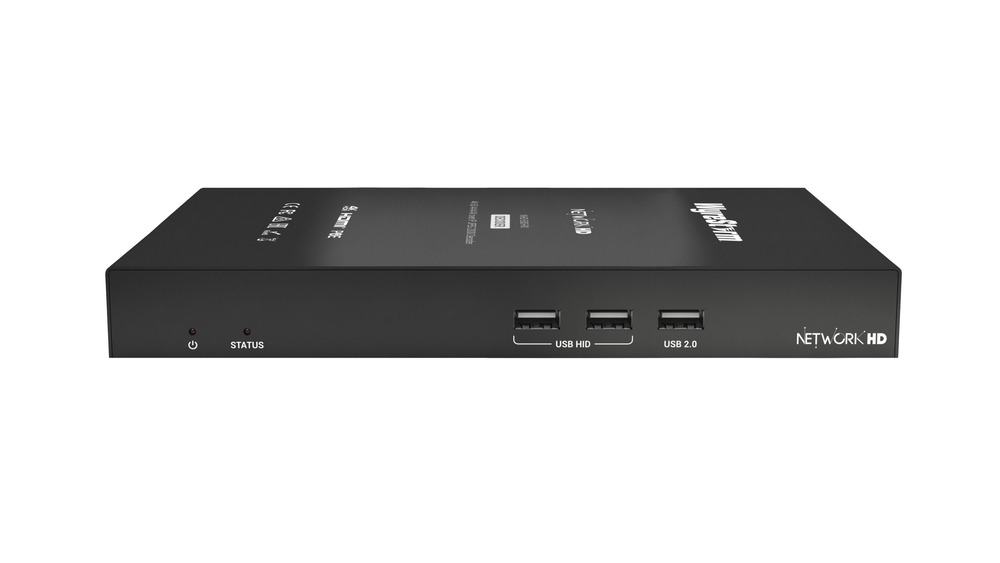

RX:
2 x USB HID Type A
1 x USB 2.0 Type A (up to 300Mbps upstream)

POWER
Power Supply: 12V DC 1A | 802.3af PoE Compliant
